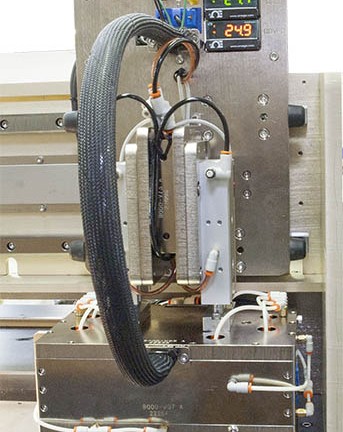

A thermal test head with temperature controls reading -87.7 degrees Celsius
Wide Range Thermal Test Head and Temperature Controls

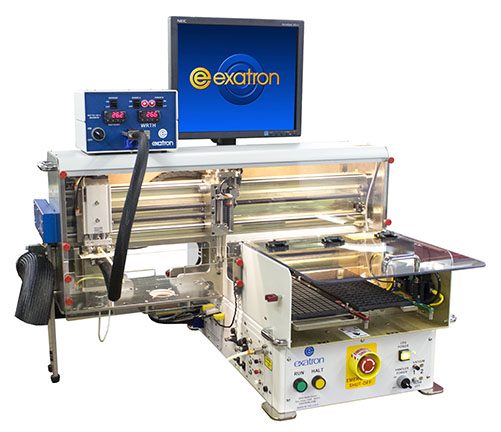

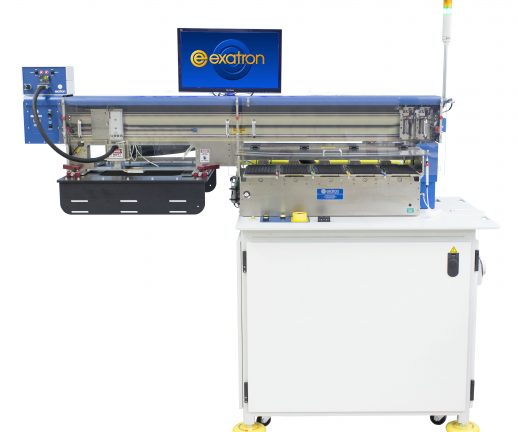

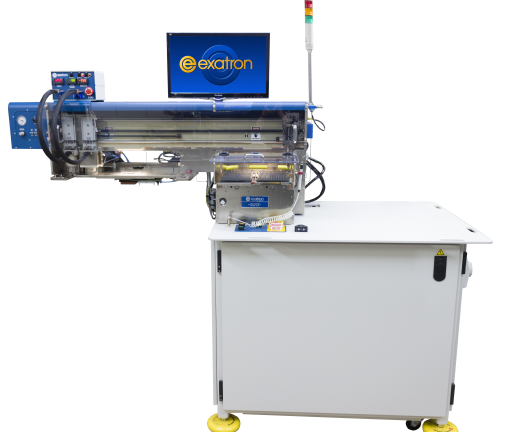

A thermal test head with temperature controls reading -87.7 degrees CelsiusPET-4D Benchtop Temperature Forcing System reading -80 degrees CModel 802 tri-temp test handler with WRTHModel 903 Tre-temp Test Handler with WRTH, Ping Pong Pickup Heads, and Top Side VisionModel 903 QTE Handler with Quad WRTH and Preheat TrayModel 8000-5DW Dual Tri-temp - with Ambient, Hot, and WRTH

KEY FEATURES:

  • -55°C to +155°C minimum working range. (-80°C to +175°C hardware capability)
  • +/-0.5°C temperature control.
  • Conduction heating.
  • No fluid required for cold test.
  • Thermal head makes direct contact with DUT and test socket.
  • Type T thermocouple mounted in thermal head.
  • Built-in top side purge air cover.
  • NO FROST BUILDUP during cold testing.
  • Built-in cold source.
  • Built-in resistive AC heaters.
  • Software-controlled temperature, soak time, ramps, and calibration.
  • Easily integrates into new and existing Exatron Pick and Place and Rotary Handlers

SPECIFICATIONS:

Power110/120 VAC or 220/240 VAC, 50/60 HZ

(Specify at time of order.)

Socket Pressure0 to 50/100/150 PSI (Specify at time of order)

Pressure may be manually adjusted or CPU-controlled.

Contact Exatron for details.

Purge AirRequires -100F or less dew point purge air source.

(Sold separately)

Download
WRTH Brochure
