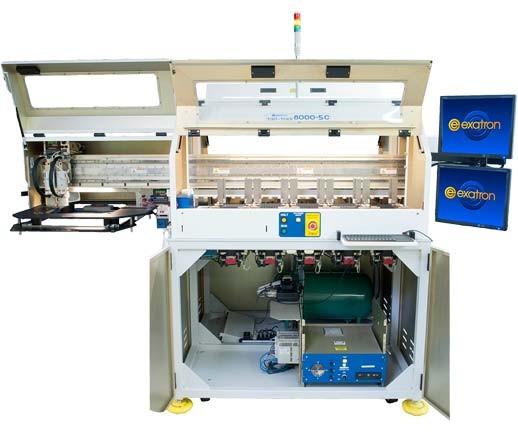

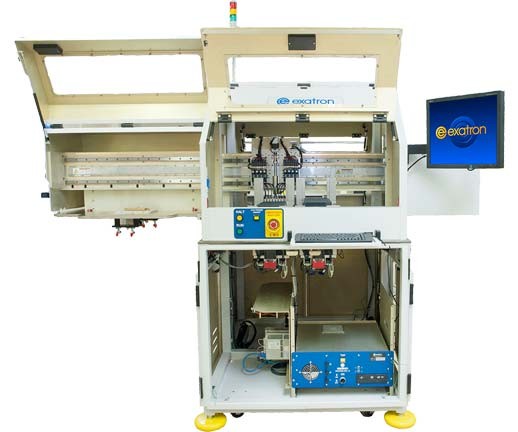

AVAILABLE FEATURES:

• Gantry lengths up to 4m (157")
• Can fit up to 10 automated input/output tray stackers
  - Each stacker fits up to 40 thin JEDEC trays
• 1-3 Z cars with up to 16 pickup tips each
• 1-128 test/program sites
• -55°C to +155°C (-80°C to +175°C) tri-temp  IC test capability
  - Can perform hot, cold, and ambient tests in one socket insertion
• Adapts to nearly any tester/programmer
• Windows 10 operator GUI
• Extensive built-in diagnostics software generated in-house at Exatron
• Job data logs come standard
• Fully enclosed on all sides, doors electrically and mechanically locked.
• Heavy duty welded steel frame.
• CE marked. RoHS compliant. Meets all ESD requirements.

OPTIONS:

Input/Output:

Test Interface:

Vision:
Pocket occupation
Device orientation
OCR/OCV
2D/3D lead/ball inspection
1D/2D data matrix read/verification
Top and/or bottom-side vision
Pocket occupation/orientation inspection standard
with output tape

Laser:
Mark in tray, no additional tooling
Wide selection of OEM laser markers
- Solid-state, fiber, diode, and CO2
CDRH Class 1

POSITIONING SYSTEM:
X Drive Gantry: Digital linear motors and linear encoders
X Axis Resolution: 0.03mm (0.001")
X Axis Max. Velocity: 150cm/s (60"/s)
Y Drive Tray: Servo motor-driven lead screws
Y Axis Resolution: 0.1mm (0.003")
-Y Axis digital linear motor upgrade available.
Z Plunger: Servo motor-driven lead screws
Z Axis Resolution: +/- 0.1mm (0.003")
Z Axis Repeatability: +/- 0.1mm (0.003")
Placement Force: Up to 10kg (20 lbs) force with standard pickup heads.
Theta Drive System: Precision stepper motors
Theta Axis Resolution: 0.1
Theta Axis Repeatability: +/- 0.1mm (0.003")

SPECIFICATIONS:

Power Required: 100-240 VAC, 50/60Hz (current depends on options)
Air Pressure Required: 80 psi clean dry, air at 5 CFM (typical, add 2 CFM per each venutri added)
