QFN Copperhead Socket

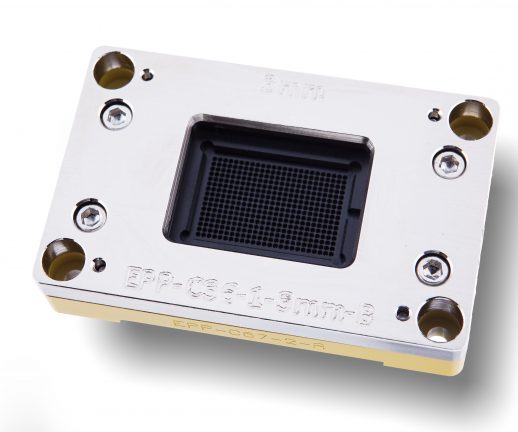

Exatron's Copperhead^® thermal test socket is a production socket specifically designed for exceptional tri-temp test performance.

The Copperhead^® features a solid copper socket topper, which:

The exact same socket can be used with all Exatron test solutions, from benchtop thermal forcing systems (PET-4D) to high-volume automated handlers.

Copperhead sockets can be made to match any existing socket footprint and to fit all BGA, MLF/QFN, SOIC, SSOIC, MSOP, and WLCSP devices.

Contact Exatron to learn more.

The Copperhead^® has routinely outperformed competitors in thermal loss and calibration deltas.

(Both sockets were tested on an Exatron Model 900 using QFNs with an embedded thermocouple.)

Devices were tested at five different temperatures for four hours each on an benchtop temperature forcing system equipped with a Copperhead socket and Exatron's Wide Range Thermal Head (WRTH)

Even at the most extreme temperatures , temperature deviation was never greater than 1°C.

PET-5 w/ WRTH Test Setup
